Antenna Tuning Unit

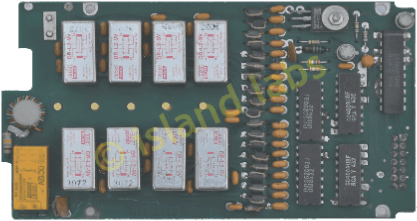

ATU components side
The silent, microprocessor controlled, antenna tuning unit match the impedance of both short tape or long whip antenna. A direct and reflected power detector control the power amp output ensures reliable operation in any working condition.

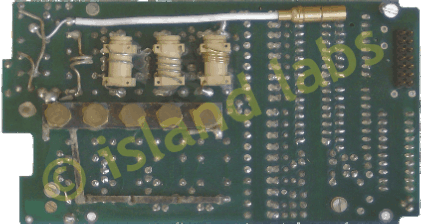

ATU solder side
This ATU (Antenna Tuning Unit) board uses Johanson high Q piston trimmer capacitor for good match with low RF loss.
