SL3127C NPN ARRAY

HIGH FREQUENCY NPN TRANSISTOR ARRAY

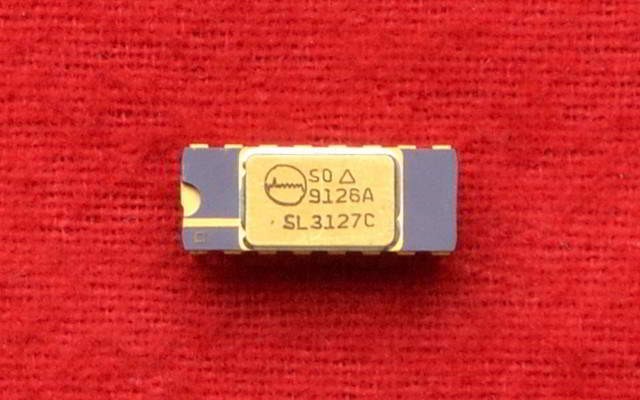

SL3127C Transistors Array Plessey
FEATURES
  • fT Typically 1.6 GHz
  • Wideband Noise Figure 3.6dB
  • VBE Matching Better Than 5mV
APPLICATIONS
  • Wide Band Amplifiers
  • PCM Regenerators
  • High-Speed Interface Circuits
  • High-Performance Instrumentation Amplifiers
  • High-Speed Modems

DESCRIPTION

The SL3127C consists of five, low current, general-purpose silicon NPN transistors on a common substrate. The monolithic construction provides close electrical and thermal matching of the five transistors. Each of the transistors exhibits a low noise figure (3.6dB typ. @ 60MHz) and a value of fT greater than 1.5 GHz. Each of the transistors is individually accessible and a separate substrate connection is provided, which is used to ensure isolation between each transistor. The SL3127 is pin compatible with RCA CA3127E.
SL3127C Plessey Internal Connections

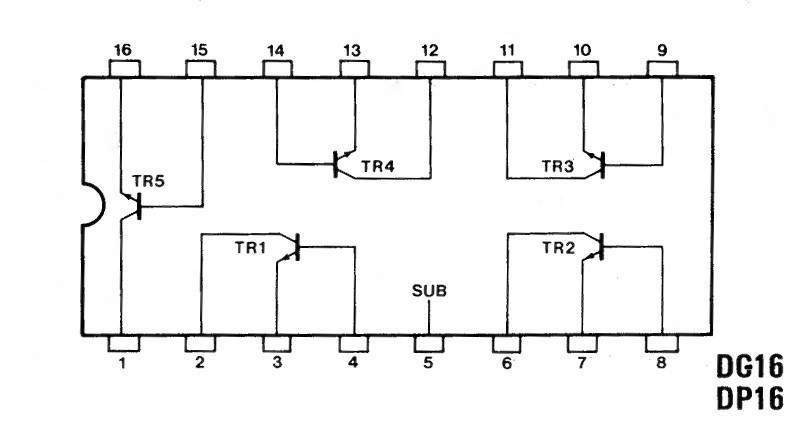

Pin connections SL3127

ABSOLUTE MAXIMUM RATINGS

The absolute maximum ratings are limiting values above which operating life may be shortened or specified parameters may be degraded.
All electrical ratings apply to individual transistors.
Thermal ratings apply to the total package.
The isolation pin (substrate) must be connected to the most negative voltage applied to the package to maintain electrical isolation.

VCB = 20volt
VEB = 4.0volt
VCE = 15volt
VCI = 20volt
  IC = 20mA

Maximum individual transistor dissipation 200 mWatt
Storage temperature —55°C to 150°C
Max junction temperature 150°C
