FX5070

5-tone Sequential Decoders-Encoder

  • FX5070 5-tone Hybrid Decoders/Encoder
  • FX5070 5-tone Hybrid Decoders/Encoder

Features

  • Fully Functional 5-Tone Selective Calling System Thick Film Hybrid Construction
  • Uses CML FX407A/FX507A Chip
  • Fixed or  Variable System Timing
  • Encoder, Decoder and Transponder
  • Choice of Package Style

Description

For more information see the FX4071 page.
FX5070 typical application
Typical circuit

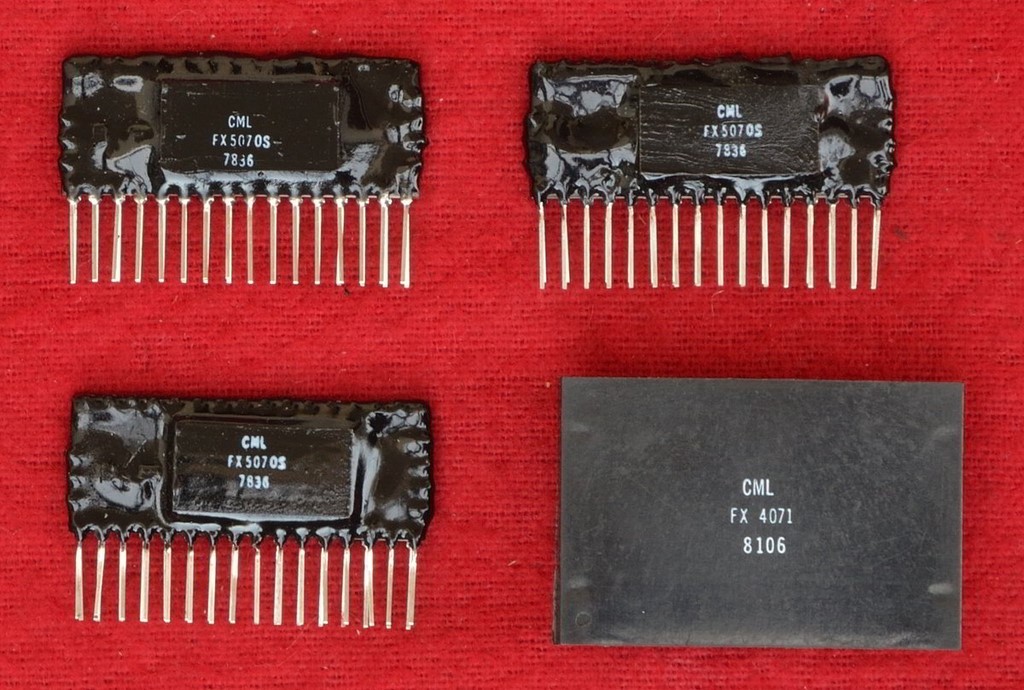

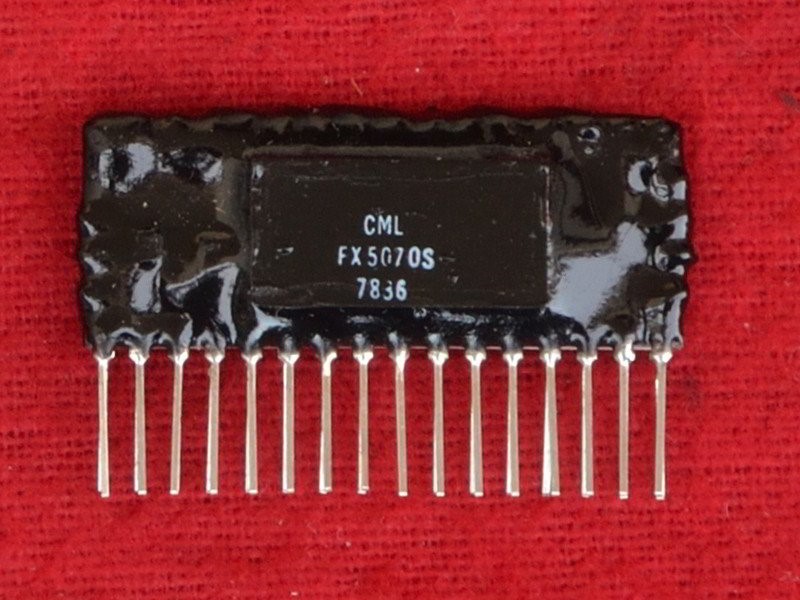

FX5070 Hybrid Package

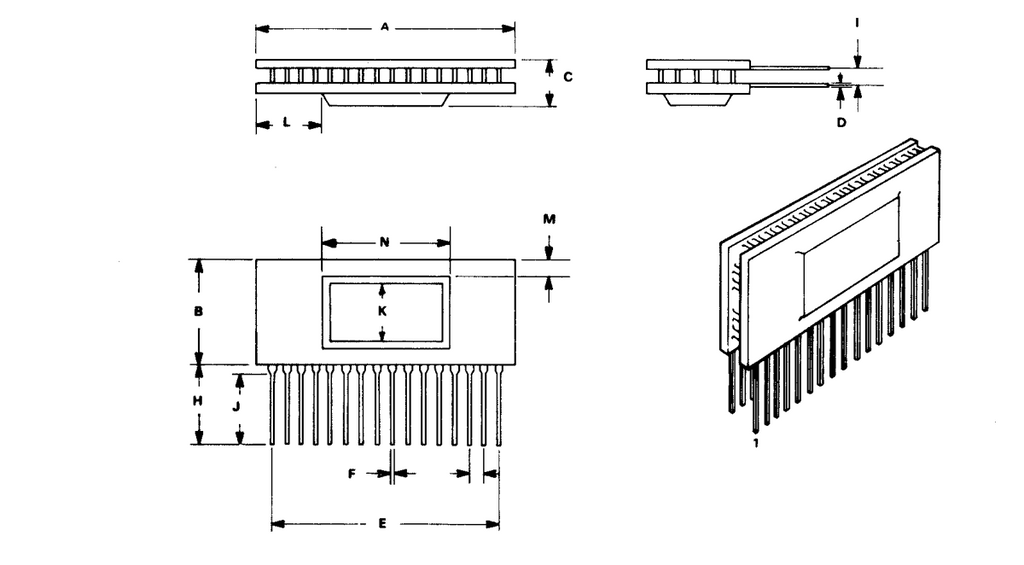

Package

Tone Frequencies

CCIR: 1121 1200.5 1278 1357 1444 1541 16-38 1747 1856.3 1983 2113 2401 Hz

ZVEI: 1057.5 1163 1269 1402 1530 1665.5 1828 2001 2203 2403 2601 2796 Hz
