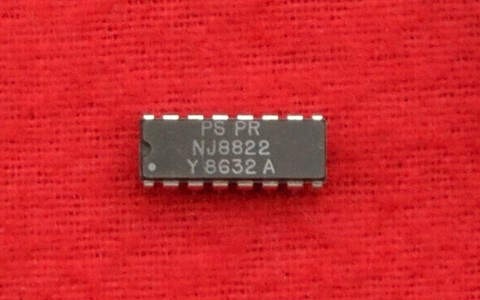

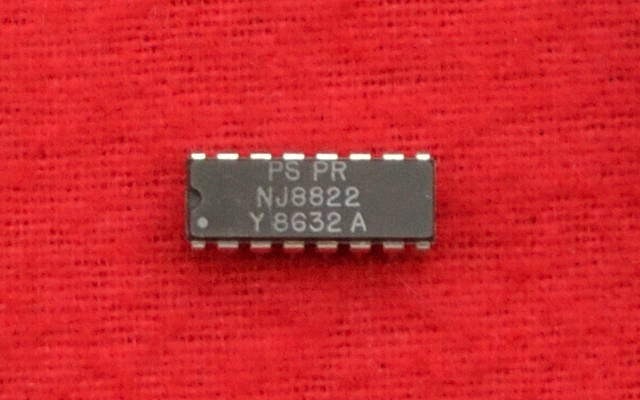

NJ8822 Synthesiser

Frequency Synthesiser with Sample & Hold Phase Detector

NJ8822 Frequency Synthesiser PLESSEY


  • Supply Current: 7mA Max
  • High-Performance Sample and Hold Phase Detector
  • Serial Input with Fast Update Feature
  • >10MHz Input Frequency
  • Fast Lock-Up Time
  • Temperature range = -30°C to +70°C
  • Supply voltage = 5V ±0.5V


The NJ8822 is the predecessor of the NJ88C22 and was
fabricated with the 2-micron CMOS process.
For other features see the
